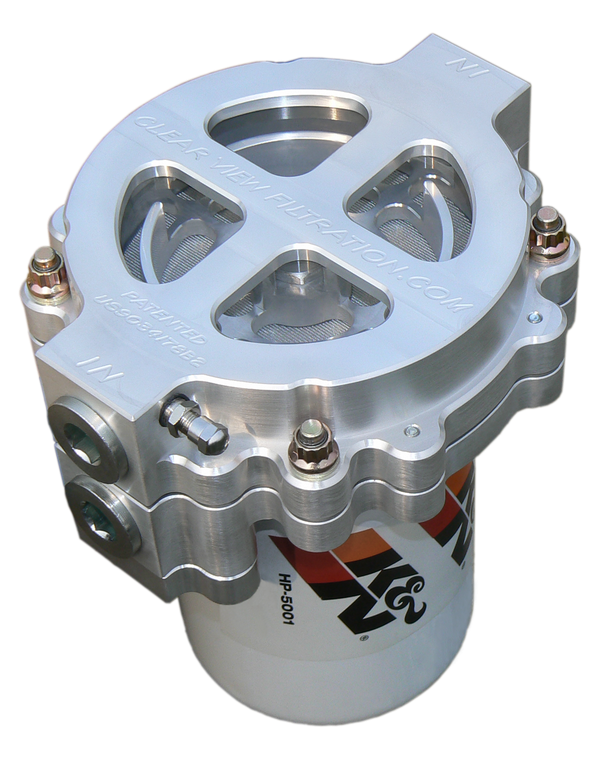

6" Screw - On See Through Filter Assembly with #12 Ports and 115 Micron Element

6″ Screw-On See Through Filter Assembly with #12 Ports and 115 Micron Element, for running all weight oils up to 70 weight. Dual Filtration is recommended for motor sports ran on dirt and pushing high volumes of oil. Filters Can Be used for many applications including Racing, Marine, Automotive, Farm, and for Industrial Hydraulic Systems. This Filter Assembly uses a HP-6 size and style disposable filter.

• Part Number: 125-115 & 125-115-B

• Smallest Particles Filtered: depends on the disposable filter microns, varies on brand

• Recommended Disposable Filter: (not included)
  K&N #HP-5001 or
  WIX #51222R or
  John Deere #RE21058
  BlackOut Series can use Napa Gold filters

• Disposable Filter Thread Size: 1-1/2” – 12 TPI

• Bypass Relief Valve: Yes

• Inlet & Outlet Fitting: #12 O-Ring Boss – 1 1/16” – 12 TPI

• Operating Temp: max 220 degrees Fahrenheit

• Operating Pressure: max 150 PSI

• Height: 3.250 in.

• Width: 6.750 in.

• Length: 7.750 in.

• Filter Weight: 6.1 pounds

• Sold as Kit including; Filter Assembly,
  115 Micron Element, and Bracket Kit
  (**WARNING Filter Nuts and Bracket bolts are shipped
  un-tightened they need to be tighten before filter is used.**)

• Recommended: Extra Filter Element Part # 115-115

• Suggested Replacement Parts:
  ~Window Part # 105-480
  ~O-Ring Kit Part # 120
  ~Filter Stud Kit (set of 2) Part # 135
  ~Air Fitting Part # 148
  ~Oil Pressure Port Fitting Part # 169
  ~Block Adapters also available

• Filters are Clear or Black Anodized for Protection and Durability.
