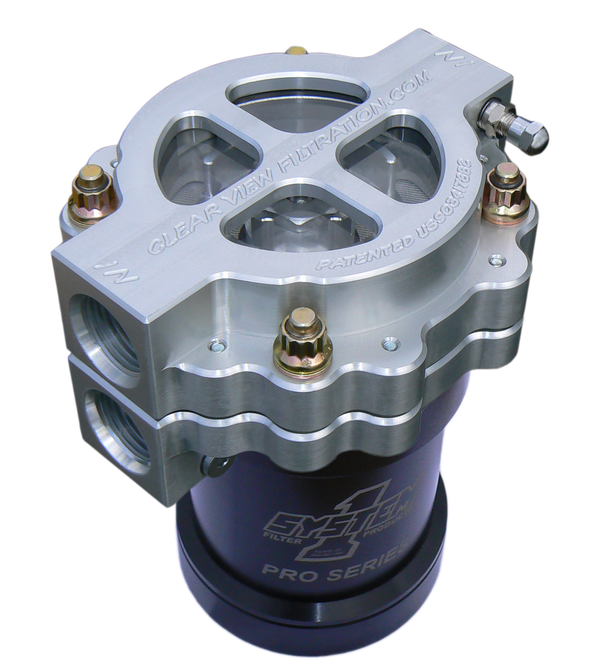

4" Screw - On See Through Filter Assembly with #12 Ports and 115 Micron Element

4″ Screw-On See Through Filter Assembly with #12 Ports and 115 Micron Element, for running 50 weight or lighter oil. This filter is machined with a flat sealing surface for use with a System 1 Filter or Disposable filters on the bottom.

• Part Number: 405-115 & 405-115-B

• Smallest Particles Filtered: depends on System 1 or disposable filter microns, varies on brand

• Recommended System 1 Filter:
  (not included) System 1 Billet Pro Series and
  Chevy adapter threaded bushing

• Recommended Disposable Filter to use in place of S1: (not included)
  K&N # HP-2002 or # HP-3002 or
  WIX #51069 or # 51060
  BlackOut Series can use Napa Gold filters

• Disposable Filter Thread Size: 13/16” – 16 TPI

• Bypass Relief Valve: Yes

• Inlet & Outlet Fitting: #12 O-Ring Boss – 1 1/16” – 12 TPI

• Operating Temp: max 220 degrees Fahrenheit

• Operating Pressure: max 150 PSI

• Height (without disposable filter): 3.00 in.

• Width: 5.00 in.

• Length: 6.00 in.

• Filter Weight: 3.4 pounds

• Sold as Kit including; Filter Assembly,
  115 Micron Element, and Bracket Kit
  (**WARNING Filter Nuts and Bracket bolts are shipped
  un-tightened they need to be tighten before filter is used.**)

• Recommended: Extra Filter Element Part # 440-115

• Suggested Replacement Parts:
  ~Window Part # 412-480
  ~O-Ring Kit Part # 425
  ~Filter Stud Kit (set of 2) Part # 135
  ~Air Fitting Part # 148
  ~Oil Pressure Port Fitting Part # 169
  ~Block Adapters also available

• Filters are Clear or Black Anodized for Protection and Durability.
