Clearview Filtration

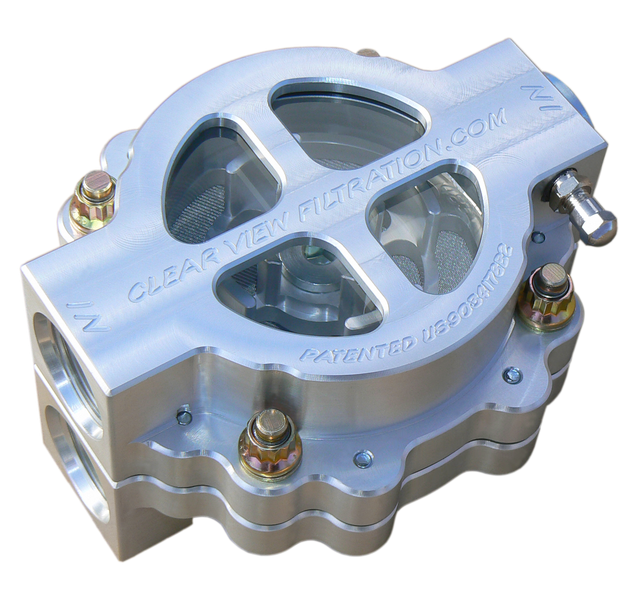

4" Dry - Sump See Through Filter Assembly with #16 Ports and 115 Micron Element
4" Dry - Sump See Through Filter Assembly with #16 Ports and 115 Micron Element
SKU: 445 - 115
Regular price
$589.95
Regular price
Sale price
$589.95
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
4″ Dry-Sump See Through Filter Assembly with #16 Ports and 115 Micron Element are for running all weight oils up to 70 weight. Designed to be mounted between the Dry-sump oil pump and the oil tank on a #16 scavenge line. Also for applications where the oil tank has a flat bottom and running 50 weight oil. Flat bottom unlike tapered bottom tanks particles will settle to the bottom and may not be sucked through the pressure side of the oil pump for inspection. Tapered bottom tanks can run the See Through filters with or without a screw-on disposable filter on the pressure side between the Dry-sump oil pump and the engine inlet oil port.
-
Part Number: 445-115 & 445-115-B
-
Smallest Particles Filtered: 115 Microns
-
Bypass Relief Valve: No
-
Inlet & Outlet Fitting: #16 O-Ring Boss – 1-5/16” – 12 TPI
-
Operating Temp: max 220 degrees Fahrenheit
-
Operating Pressure: max 150 PSI
-
Height: 3.50 in.
-
Width: 5.00 in.
-
Length: 6.00 in.
-
Filter Weight: 3.90 pounds
-
Sold as Kit including; Filter Assembly,
115 Micron Element, and Bracket Kit
(**WARNING Filter Nuts and Bracket bolts are shipped
un-tightened they need to be tighten before filter is used.**) -
Recommended: Extra Filter Element Part # 440-115
-
Suggested Replacement Parts:
~Window Part # 412-480
~O-Ring Kit Part # 425
~Filter Stud Kit (set of 2) Part # 135
~Air Fitting Part # 148
~Oil Pressure Port Fitting Part # 169
~Block Adapters also available -
Filters are Clear or Black Anodized for Protection and Durability.
