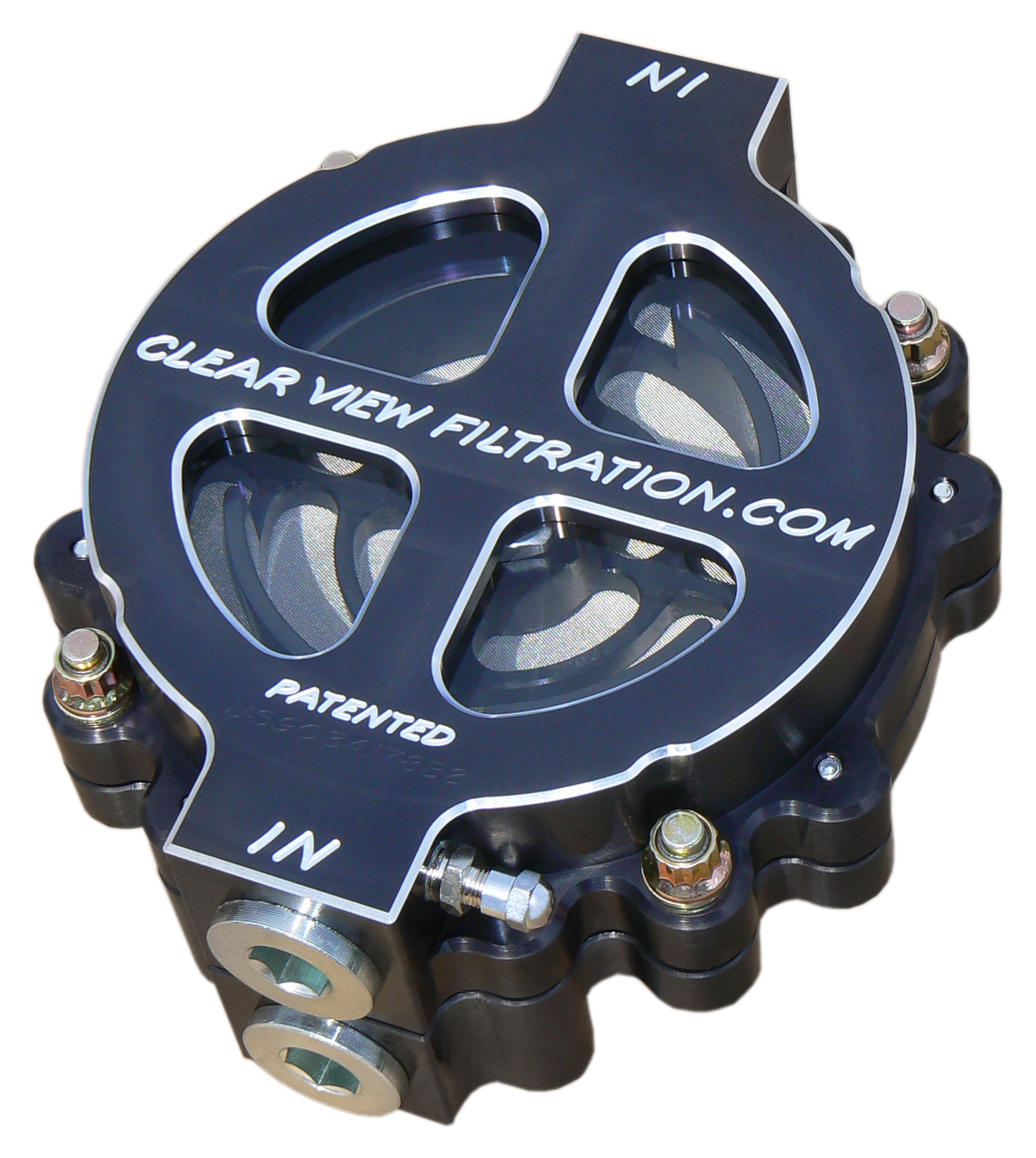

100 - 60 - B – Black Out 6in Hi - Flow See Through Oil Filter

6″ Hi-Flow Black Out Filter Assembly with #12 Ports and 60 Micron Element, for running 50 weight or lighter oil. For Supercharged Hemi’s, Pro Mod and Extreme Engine combinations pushing high volumes of oil.

• Part Number: 100-60 & 100-60-B

• Smallest Particles Filtered: 60 Microns

• Bypass Relief Valve: Yes

• Inlet & Outlet Fitting: #12 O-Ring Boss – 1 1/16” – 12 TPI

• Operating Temp: max 220 degrees Fahrenheit

• Operating Pressure: max 150 PSI

• Height: 3.250 in.

• Width: 6.750 in.

• Length: 7.750 in.

• Filter Weight: 5.75 pounds

• Sold as Kit including; Filter Assembly,
  60 Micron Element, and Bracket Kit
  (**WARNING Filter Nuts and Bracket bolts are shipped
  un-tightened they need to be tighten before filter is used.**)

• Recommended: Extra Filter Element Part # 110-60

• Suggested Replacement Parts:
  ~Window Part # 105-480
  ~O-Ring Kit Part # 120
  ~Filter Stud Kit (set of 2) Part # 135
  ~Air Fitting Part # 148
  ~Oil Pressure Port Fitting Part # 169
  ~Block Adapters also available

• Filters are Clear or Black Anodized for Protection and Durability.
